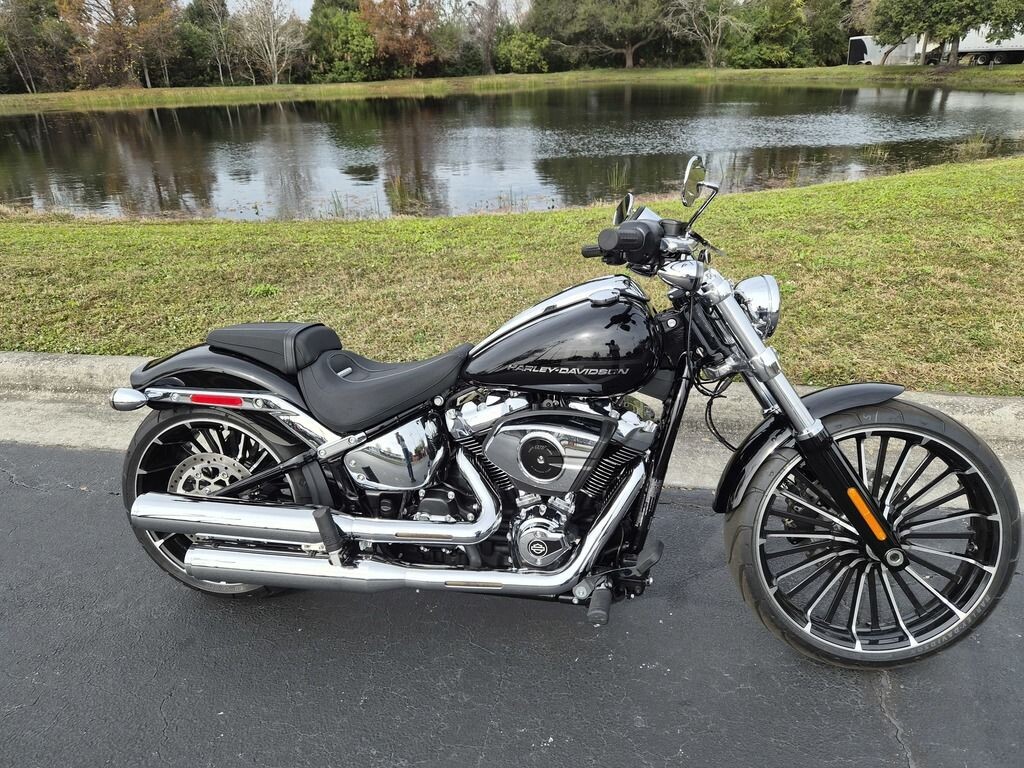

‹ Home › Inventory › 2025 Harley-Davidson® Breakout™ FXBR

2025 Harley-Davidson® Breakout® Features may include: DESIGN LED Lighting Compact lighting fits the old-school chopper vibe, while bright white LEDs meet modern standards. Premium Paint + Graphics Five premium paint options include new Factory Custom Midnight Firestorm, with gloss black base and ghost flames. Rear Wheel 240mm rear tire provides classic chopper styling with updated geometry and peak handling, while maintaining a wide contact patch to get maximum power to the ground during acceleration. Chopper-Style Rake 34-degree rake is classic chopper style, while subtle adjustments to trail and chassis make this bike handle better than any old-school chopper ever could.PERFORMANCE Milwaukee-Eight® 117 Custom Powertrain A new, more powerful engine with incredible torque for intense acceleration from stops, commanding passing power, and effortless cruising at highway speeds. Two-Into-Two Exhaust Enjoy classic cruiser lines and high-flowing performance with this two-into-two exhaust system. Rear Suspension Hydraulic preload adjustment for monoshock is easily accessed underneath the seat for quick load adjustments to ensure optimal riding conditions. Intake New touring intake provides high-flowing performance and high-performance style. Brakes Single 300mm front disc brake highlights the style of the bold 21-inch front wheel while providing incredible stopping performance.INNOVATION Four-Inch Analog Display The easy readability of an analog speedometer combined with the versatility of a digital screen that displays ride modes, mileage, and more. Hand Controls New ergonomic hand controls accommodate Rider Safety Enhancements, and an adjustable brake lever is quickly tunable to rider preference. USB-C Charging USB-C charging keeps your devices powered, so you can ride farther while using navigation, listening to music, and staying connected through your Bluetooth® headset.

Specifications

Dimensions

add remove
- Length:

  93.5 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  655 lbs
- Weight, in running order:

  681 lb
- Tire, type:

  Michelin® Scorcher 11, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  126.1 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  49 mpg (4.8 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
