The Harley-Davidson® Ultra Limited gives you premium touring performance with no compromises to the ride.

Specifications

  • Dimensions
    add remove
    • Length:
      102.4 in
    • Seat height, unladen:
      29.1 in
    • Ground clearance:
      5.3 in
    • Rake (steering head):
      26
    • Trail:
      6.7 in
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      BW 130/70B18 63H
    • Tires, rear specifications:
      BW 180/55B18 80H
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      880 lbs
    • Weight, in running order:
      917 lb
    • Luggage capacity – volume:
      4.7 cu ft (0.132 m3)
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and rear
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight™ 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      118.0 ft-lb
    • Engine torque (RPM):
      3000
    • Horsepower:
      93 HP / 69 kW @ 5020 rpm
    • Lean angle, right (deg.):
      32
    • Lean angle, left (deg.):
      32
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
    • Fuel economy:
      6.3 l/100 km (37 mpg)
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      146 g/km CO2
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Front fork:
      49mm Dual Bending Valve
    • Rear shocks:
      Premium standard height hand-adjustable rear suspension
    • Wheels, front type:
      Gloss Black Slicer II
    • Wheels, rear type:
      Gloss Black Slicer II
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      32 mm, 4-piston fixed front and rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights, 8W/28W tail/stop and front signal lights
    • Gauges:
      Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      25
    • Speakers:
      4
    • Speaker size:
      5.25 inch standard
    • Headset specifications (if equipped):
      16-64 ohms
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade (USA & Canada only)
    • Languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Voice Recognition Languages: Tuner / Media / Navigation:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Text-to-Speech (TTS) languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Rider / passenger intercom:
      Standard
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported

Request details 1

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing is out the door pricing inclusive of all dealer fees. Pricing listed is exclusive of sales tax and government fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

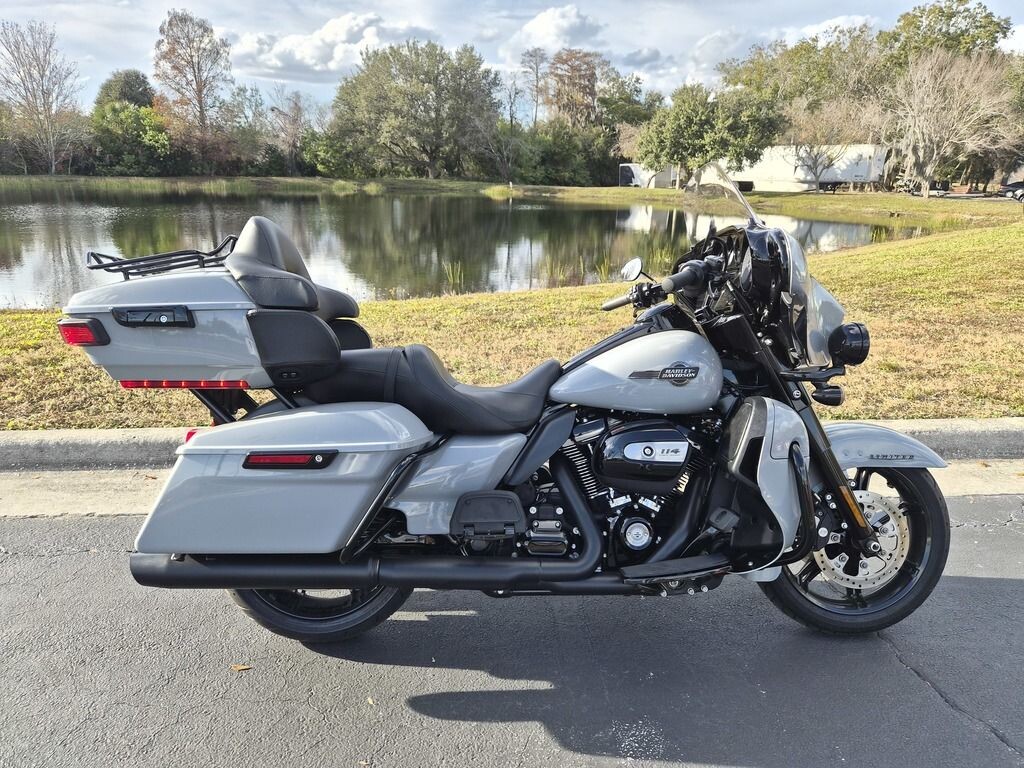

2024 Harley-Davidson® Ultra Limited FLHTK
