The all-new CVO™ Tri Glide® is a custom trike that's loaded with more premium touring features and chrome accessories than you could ever imagine. Bold styling with premium paint and Tomahawk™ wheels, Twin-Cooled™ Milwaukee-Eight® 117 engine and Kahuna™ controls will thrill riders seeking a one-of-a-kind 3-wheel touring experience.

Specifications

  • Dimensions
    add remove
    • Length:
      105.1 in
    • Ground clearance:
      5.1 in
    • Rake (steering head):
      26
    • Trail:
      3.9 in
    • Wheelbase:
      65.7 in
    • Tires, front specifications:
      130/60B19 M/C 61H
    • Tires, rear specifications:
      P215/45R18 83T
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      1,241 lbs
    • Weight, in running order:
      1269 lb
    • Luggage capacity – volume:
      6.8 cu ft (0.19 m3)
  • Engine
    add remove
    • Engine:
      Twin-Cooled™ Milwaukee-Eight™ 117
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.2:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with slash cut tip
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      120.2 ft-lb
    • Engine torque (RPM):
      3500
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      0.00 mpg
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      163 g/km
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      10.534
    • Gear ratios (overall) 2nd:
      7.302
    • Gear ratios (overall) 3rd:
      5.423
    • Gear ratios (overall) 4th:
      4.392
    • Gear ratios (overall) 5th:
      3.741
    • Gear Ratios (overall) 6th:
      3.157
  • Chassis
    add remove
    • Wheels, optional style type:
      Gloss Black and Contrast Smoked Satin Tomahawk
    • Wheels, front type:
      Gloss Black and Contrast Clear Tomahawk
    • Wheels, rear type:
      Gloss Black and Contrast Clear Tomahawk
    • Brakes, caliper type:
      Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      High Beam, running lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, low fuel warning, reverse, park brake, fog/aux lamp indicator, traction control, security/fault indication, coolant temp, turn signal, ABS, TPMS
    • Gauges:
      Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator, and tire pressure
  • Infotainment
    add remove
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      75
    • Speakers:
      4
    • Speaker size:
      Boom! Audio Stage I
    • Headset specifications (if equipped):
      Boom! Audio 30K Wireless Headset
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade (USA & Canada only)
    • Languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Voice Recognition Languages: Tuner / Media / Navigation:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Text-to-Speech (TTS) languages:
      English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic
    • Rider / passenger intercom:
      Standard
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported

Request details 1

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing is out the door pricing inclusive of all dealer fees. Pricing listed is exclusive of sales tax and government fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

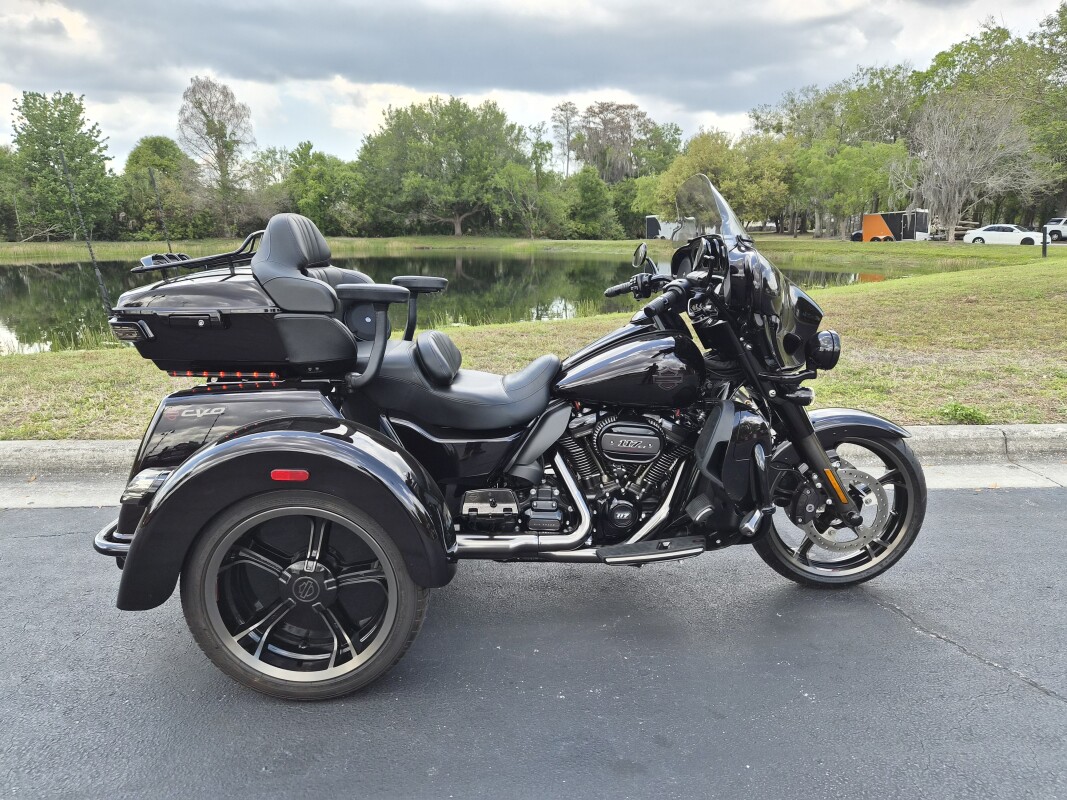

FLHTCUTGSE 2021 CVO™ Tri Glide®
