With a wide rear tire, bobtail rear fender, long rake, straight handlebars, and a 21-inch front wheel, the Breakout marries classic chopper style with the performance of a Milwaukee-Eight® 117 Custom powertrain.

Specifications

  • Dimensions
    add remove
    • Length:
      93.5 in
    • Seat height, unladen:
      26.2 in
    • Ground clearance:
      4.5 in
    • Rake (steering head):
      34
    • Trail:
      5.7 in
    • Wheelbase:
      66.7 in
    • Tires, front specifications:
      130/60B21,63H,BW
    • Tires, rear specifications:
      240/40R18,79V,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      655 lbs
    • Weight, in running order:
      681 lb
    • Tire, type:
      Michelin® Scorcher 11, front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 Custom
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 staggered; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      126.1 ft-lb
    • Engine torque (RPM):
      3000
    • Horsepower:
      104 HP / 77 kW @ 4800 rpm
    • Lean angle, right (deg.):
      26.8
    • Lean angle, left (deg.):
      26.8
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      49 mpg (4.8 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
    • Wheels, front type:
      Gloss black, 26-spoke cast aluminum
    • Wheels, rear type:
      Gloss black, 26-spoke cast aluminum
    • Brakes, type:
      Front and rear black, Split 7-spoke floating rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear

Request details 1

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing is out the door pricing inclusive of all dealer fees. Pricing listed is exclusive of sales tax and government fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

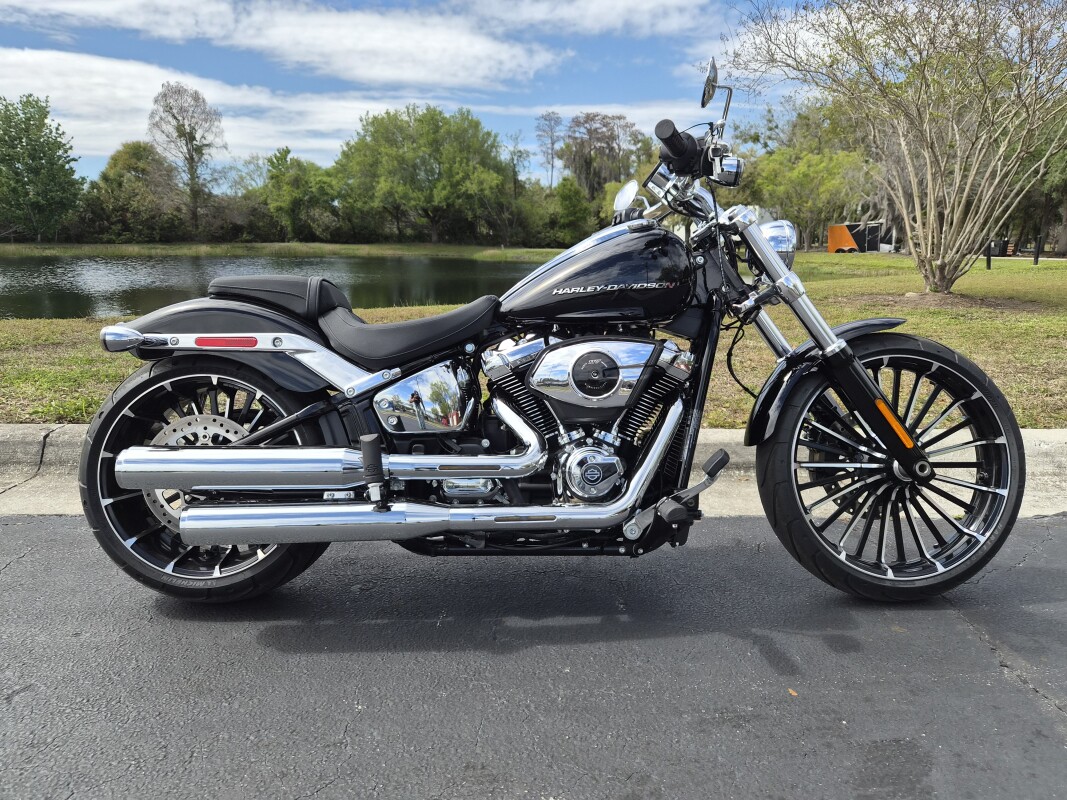

FXBR 2025 Breakout™
