Loaded with all of the current technology including Reflex™ Defensive Rider Systems, and Apple CarPlay®, and powered by the Milwaukee-Eight® 114 engine, this unmistakable silhouette recreates that moment in time with tri-tone paint and period correct badging. The first of our new and extremely limited Icons Collection, this is a numbered edition of 1,500 globally.

Specifications

  • Dimensions
    add remove
    • Length:
      94.5 in
    • Ground clearance:
      4.5 in
    • Rake (steering head):
      26
    • Trail:
      6.8 in
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      MT90B16 72H
    • Tires, rear specifications:
      180/65B16 81H
    • Fuel Capacity:
      6.0 gal
    • Oil capacity:
      5.2 qt.
    • Weight, as shipped:
      824 lbs
    • Weight, in running order:
      862 lb
    • Luggage capacity – volume:
      2.3 cu ft
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias wide whitewall
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 114
    • Bore:
      4.0 in
    • Stroke:
      4.5 in
    • Displacement:
      113.99 in3
    • Compression ratio:
      10.5:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      118.0 ft-lb
    • Engine torque (RPM):
      3250
    • Horsepower:
      97 HP / 72 kW @ 5020 rpm
    • Lean angle, right (deg.):
      32
    • Lean angle, left (deg.):
      31
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      0.00 mpg
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Front fork:
      49mm Dual Bending Valve
    • Rear shocks:
      Premium Low Hand-Adjustable Rear Suspension
    • Wheels, front type:
      Chrome Steel Laced w/ Custom Whitewall Tires
    • Wheels, rear type:
      Chrome Steel Laced w/ Custom Whitewall Tires
    • Brakes, caliper type:
      32 mm, 4-piston fixed front and rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      High beam, running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, accessory, security system, gear indication, low fuel warning, ABS, miles to empty display, fog/aux lamp indicator
    • Gauges:
      Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
  • Infotainment
    add remove
    • Screen size:
      6.5 in
    • Infotainment system:
      Boom!™ Box GTS
    • Type:
      Full Color TFT
    • Watts per channel:
      25
    • Speakers:
      2
    • Speaker size:
      5.25 inch BOOM standard
    • AM:
      Standard
    • FM:
      Standard
    • Weather Band (WB):
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • SiriusXM Presets:
      20 - P&A Upgrade
    • Languages:
      English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
    • Voice Recognition Languages: Tuner / Media / Navigation:
      English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
    • Text-to-Speech (TTS) languages:
      English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese
    • Vehicle information screen:
      Standard
    • USB:
      USB/MTP/iPod/iPhone
    • Bluetooth:
      Phone/Media Supported

Request details 1

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing is out the door pricing inclusive of all dealer fees. Pricing listed is exclusive of sales tax and government fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

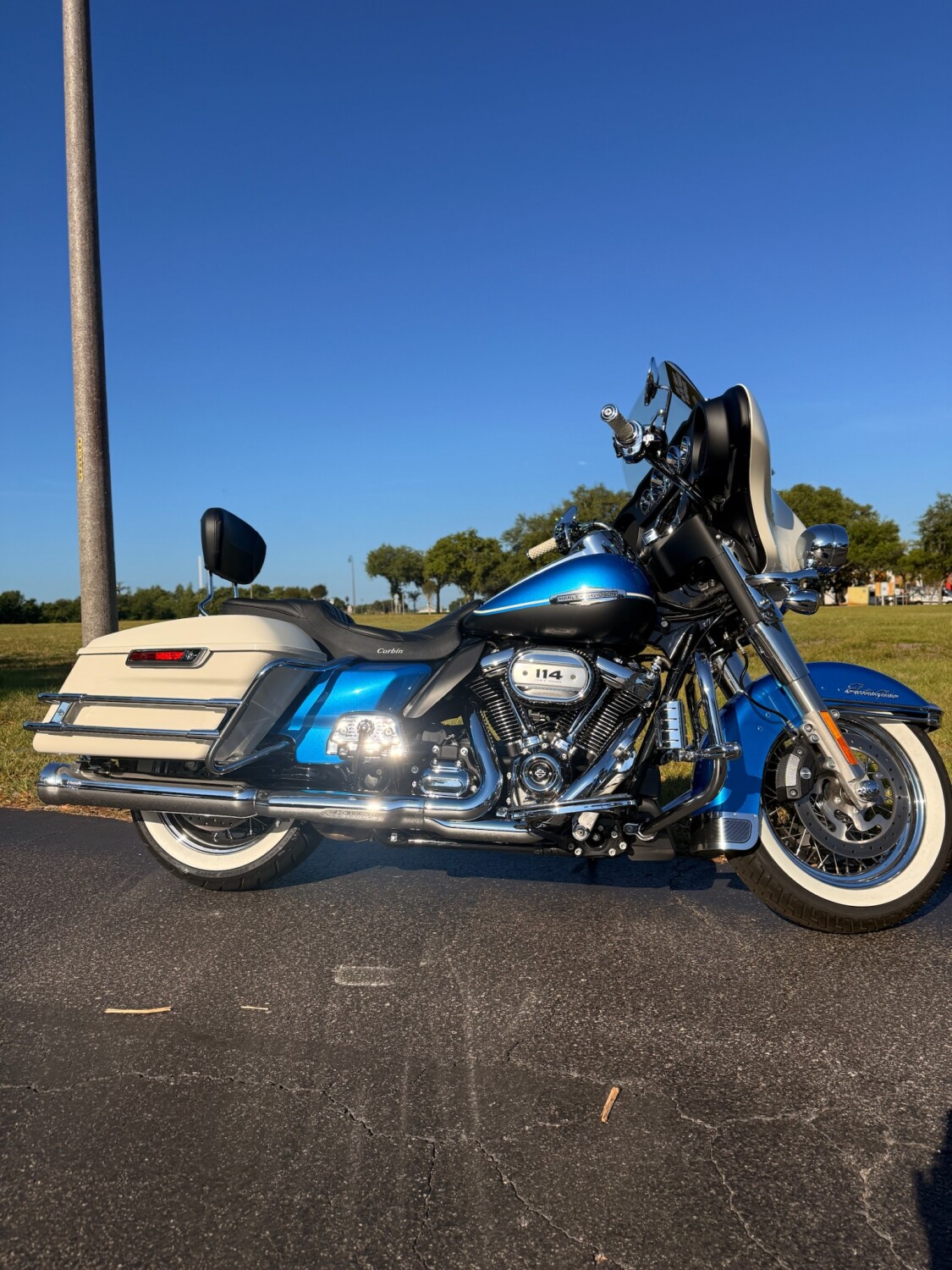

FLH 2021 Electra Glide® Revival™

Price: $26,199.00
630101A
1HD1AAP10MB630101
Harley-Davidson®
Grand American Touring
Pre-owned
2021
4802 mi
HI-FI BLU/BLK DENIM W/BIRCH
