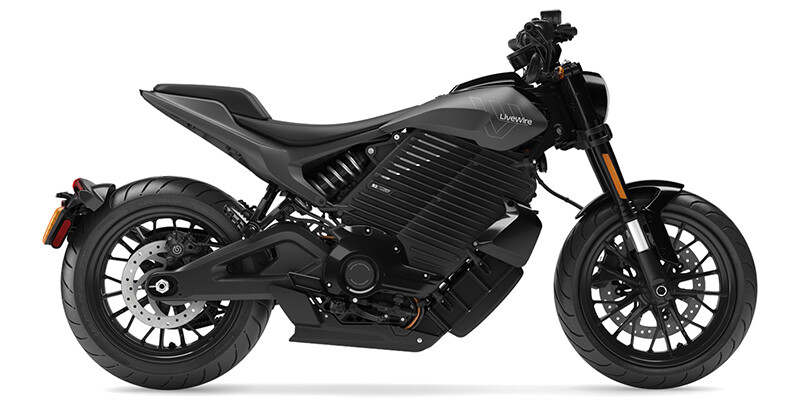

LiveWire™ S2 Alpinista®

Specifications

• ENGINE

  add remove
  • Engine
    Standard
  • Engine Type
    Electric
  • Cylinders
    0
  • Horsepower (bhp)
    84
  • Horsepower (kW)
    63
  • Torque (Ft Lbs)
    194
  • Torque (Nm)
    263
  • Valves
    0
  • Valves Per Cylinder
    0
  • Valve Configuration
    Not Available
  • Turbocharged
    No
  • Supercharged
    No
  • Starter
    Electric
  • Fuel Type
    Electric
  • Maximum Range (mi)
    120
  • Maximum Range (km)
    193.1
  • Carburetion
    Not Available
  • Fuel Injector
    No
  • Carburetor
    No
  • Number Of Carburetors
    0
  • Parental Controls
    Not Available
  • Other Engine
    Not Available
• ELECTRIC ENGINE

  add remove
  • Electric Engine
    Standard
  • Electric Motor Type
    DC
  • Maximum Engine Range (Miles)
    120
  • Maximum Engine Range (km)
    181.9
  • Battery
    Standard
  • Battery Type
    Lithium Ion
  • Number of Batteries
    1
  • Battery Capacity (Watts)
    10500
  • Battery Capacity (KWh)
    10.5
  • Battery Charging System
    Standard
  • Battery Current Type
    DC
  • Battery Input Type
    J1772
  • Charging Level
    Level 1 / Level 2
  • Battery Charging System Location
    Onboard
  • Variable Charging Time
    Yes
  • Minimum Charging Time (Minutes)
    78
  • Full Charging Time Minutes (120V)
    504
  • Full Charging Time Minutes (240V)
    142
  • Battery Voltage (V)
    346
• TRANSMISSION

  add remove
  • Transmission
    Standard
  • Transmission Type
    Automatic
  • Number Of Speeds
    1
  • Overdrive
    No
  • Primary Drive (Rear Wheel)
    Belt
  • Reverse
    No
  • Heel Toe Shifter
    Not Available
  • Adjustable Throttle
    Not Available
  • Other Transmission
    Not Available
• TECHNICAL SPECIFICATIONS

  add remove
  • Dimensions
    Standard
  • Length (in)
    87
  • Length (mm)
    2209.8
  • Width (in)
    34
  • Width (mm)
    863.6
  • Wheelbase (in)
    56.8
  • Wheelbase (mm)
    1442.7
  • Ground Clearance (in)
    6.5
  • Ground Clearance (mm)
    165.1
  • Weight
    Standard
  • Wet Weight (lbs)
    433
  • Wet Weight (kg)
    196.4
  • Capacities
    Standard
  • Performance
    Standard
  • Fuel Capacity (gal)
    0
  • Fuel Capacity (l)
    0
  • Fuel Capacity Reserve (gal)
    0
  • Fuel Capacity Reserve (l)
    0
• EXTERIOR

  add remove
  • Construction
    Standard
  • Frame
    Aluminum
  • Body Material
    Aluminum
  • Floor Boards
    Not Available
  • Foot Pegs
    Standard
  • Foot Peg Location
    Driver and Passenger
  • Hand Grips
    Standard
  • Handlebars
    Standard
  • Handlebar Pads
    Not Available
  • Exterior Guards
    Standard
  • Belt Guard
    Yes
  • Brush Guard
    No
  • Chain Guard
    No
  • Chassis Protectors
    Yes
  • Drive Shaft Guard
    No
  • Engine Case Guard
    Yes
  • Exhaust Guard
    No
  • Fork Guards
    No
  • Hand Guards
    No
  • Heel Guards
    No
  • Light Guard
    No
  • Tank Guard
    No
  • Exterior Covers
    Standard
  • Fuel Tank Cover
    No
  • Radiator Cover
    No
  • Side Cover
    No
  • Front Fender
    Standard
  • Front Fender Trim
    Not Available
  • Front Fender Rail
    Not Available
  • Rear Fender
    Standard
  • Rear Fender Trim
    Not Available
  • Rear Fender Rail
    Not Available
  • Top Crown
    Standard
  • Tank Divider
    Standard
  • Pocket
    No
  • Stand
    Standard
  • Stand Type
    Kick
  • Upper Fairing
    Not Available
  • Lower Fairing
    Not Available
  • Spoiler
    Not Available
  • Skid Plate
    Standard
  • Wind Deflector
    Not Available
  • License Plate
    Standard
  • Other Exterior
    Not Available
• STEERING

  add remove
  • Steering
    Standard
  • Steering Control
    Handlebar
  • Other Steering
    Not Available
• SUSPENSION

  add remove
  • Front Suspension
    Standard
  • Front Suspension Brand Name
    Showa®
  • Front Suspension Type
    Inverted Fork
  • Front Adjustable Fork Pre-Load
    Yes
  • Front Adjustable Rebound Damping
    Yes
  • Front Central Suspension Strut
    No
  • Rear Suspension
    Standard
  • Rear Suspension Brand Name
    Showa®
  • Rear Suspension Type
    Twin Sided Swing Arm
  • Rear Adjustable Shock / Spring Pre-Load
    Yes
  • Rear Adjustable Rebound Damping
    Yes
  • Number Rear Shock Absorbers
    1
  • Air Adjustable
    No
  • Other Suspension
    Not Available
  • Front Suspension Size (in)
    1.7
  • Front Suspension Size (mm)
    43
  • Front Travel (in)
    4.7
  • Front Travel (mm)
    119.4
  • Rear Suspension Material
    Aluminum
  • Rear Travel (in)
    4.7
  • Rear Travel (mm)
    119.4
• WHEELS & TIRES

  add remove
  • Wheels
    Standard
  • Wheels Composition
    Aluminum
  • Chromed
    No
  • Tires
    Standard
  • Tire Brand
    Dunlop®
  • Front Tire Width
    120
  • Front Tire Aspect Ratio
    70
  • Front Tire Speed Rating
    Z
  • Front Wheel Diameter
    17
  • Rear Tire Width
    180
  • Rear Tire Aspect Ratio
    55
  • Rear Tire Speed Rating
    Z
  • Rear Wheel Diameter
    17
  • Front Tire (Full Spec)
    Dunlop® RoadSmart IV 120/70 ZR17
  • Rear Tire (Full Spec)
    Dunlop® RoadSmart IV 180/55 ZR17
  • Spare Tire
    Not Available
  • Other Wheels & Tires
    Not Available
  • Front Wheel Width (in)
    3.5
  • Rear Wheel Width (in)
    5.5
• BRAKES

  add remove
  • Brakes
    Standard
  • Brake Brand Name
    Brembo® Monobloc
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
  • Anti-Lock Brakes
    Standard
  • Regenerative Braking
    Standard
  • Other Brakes
    Not Available
  • Linked Brake System Front to Rear
    Not Available
• SEATS

  add remove
  • Seat
    Standard
  • Seat Type
    Two-Piece
  • Seat Location
    Driver and Passenger
  • Seat Specifications
    Standard
  • Seat Height (in)
    31.2
  • Seat Height (mm)
    792.5
  • Number Of Seats
    2
  • Detachable Passenger Seat
    Not Available
  • Seat Backrest
    Not Available
  • Seat Rail
    Not Available
  • Grab Rail or Strap
    Standard
  • Heated Seat
    Not Available
  • Sidecar
    Not Available
  • Other Seat
    Not Available
• GLASS

  add remove
  • Folding
    Yes
  • Rearview Mirrors
    Standard
  • Sidecar Windshield
    Not Available
  • Windshield Wipers
    Not Available
  • Other Glass
    Not Available
• INSTRUMENTATION

  add remove
  • Digital Instrumentation
    Standard
  • Clock
    Standard
  • Speedometer
    Standard
  • Trip Odometer
    Standard
  • Trip Computer
    Standard
  • Compass
    Not Available
  • Navigation System
    Not Available
  • Lap Timer
    Not Available
  • Fuel Level Warning
    Not Available
  • Oil Pressure Gauge
    Not Available
  • Shift Light
    Not Available
  • Service Reminder
    Standard
  • Multi-Lingual Instrumentation
    Not Available
  • Battery Status Gauge
    Standard
  • Other Instrumentation
    Not Available
• STORAGE

  add remove
  • Hard Side Cases
    Not Available
  • Fork Bag
    Not Available
  • Tank Bag
    Not Available
  • Leather Storage
    Not Available
  • Glove Box / Dash Storage
    Not Available
  • Front Rack
    Not Available
  • Front Rack Storage
    Not Available
  • Rear Rack
    Not Available
  • Rear Rack Storage
    Not Available
  • Side Rack
    Not Available
  • Side Rack Storage
    Not Available
  • Bag Liners
    Not Available
  • Cupholder
    Not Available
  • Sidecar Storage Cover
    Not Available
  • Map Holder
    Not Available
  • Helmet Storage
    Not Available
  • Sidecar Front Rack
    Not Available
  • Sidecar Rear Rack
    Not Available
  • Sidecar Fender Rack
    Not Available
  • Sidecar Trunk
    Not Available
  • Other Storage
    Not Available
• LIGHTS

  add remove
  • Headlight(s)
    Standard
  • Type
    LED
  • Halogen Headlight(s)
    Not Available
  • Adjustable Headlights
    Not Available
  • Fog Lights
    Not Available
  • Headlight Mounts
    Standard
  • Headlight Mounting Bar
    Not Available
  • Headlight Visor
    Not Available
  • Turn Signal Visor
    Not Available
  • Passing Lamps
    Not Available
  • Passing Lamp Visors
    Not Available
  • Other Lights
    Not Available
• CONVENIENCE

  add remove
  • Engine Immobilizer
    Standard
  • Engine Immobilizer Brand
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grips
    Not Available
  • Keyless Ignition
    Not Available
  • Power Outlet
    Standard
  • Adjustable Handlebars
    Not Available
  • Adjustable Levers
    Not Available
  • Alarm System
    Not Available
  • Handlebar Lock
    Standard
  • First Aid Kit
    Not Available
  • Other Convenience
    Not Available
• AUDIO & COMMUNICATION

  add remove
  • Speakers
    Not Available
  • Cassette Player
    Not Available
  • CD Player
    Not Available
  • CB Radio
    Not Available
  • Intercom
    Not Available
  • Headset
    Not Available
  • Wireless / Connectivity
    Standard
  • Bluetooth® Audio
    Yes
  • Mobile App Instrumentation
    Yes
  • Other Audio & Communication
    Not Available
  • Radio
    Not Available
• MOUNTS

  add remove
  • Side Case Mount
    Not Available
  • Other Mounts
    Not Available
  • Tool Bag Mount
    Not Available
• PAINT & FINISH

  add remove
  • Paint
    Standard
  • Secondary Color
    Not Available
  • Decal Kit
    Not Available
  • Other Paint & Finish
    Not Available
• SPECIAL PACKAGE

  add remove
  • Special Package
    Not Available
• Color options

  add remove
  • Asphalt Black
  • Glacier Silver
